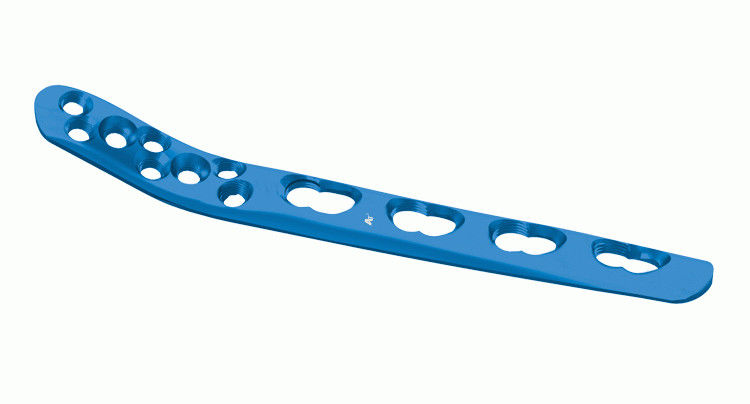

Distal Fibular Posterolateral Locking Plate Trauma Fixation Devices

● Anatomic & preshaped design

● Combi-holes in shaft:

3.5mm locking screw,

3.5mm cortex screw,

4.0 mm cancellous screw

● Screw head recess is located in the coaxial hole, which can minimize screw protrusion and achieve low-profile structure

● Six round locking holes and two coaxial holes can be used with 2.4 mm and 2.7 mm locking and cortex screws.

Multi options are provided. provide multiple screw options

● Anatomic & preshaped and low-profile design is reflected in both distal part and extension part of fibular shaft.

● The combi-holes in the LCP plate shaft combine a dynamic compression unit (DCU) hole with a locking screw hole.

● Locking screws do not rely on plate-to-bone compression to resist patient load, but functionally similar to small angle blade plate.

● Combi-holes provide maximum flexibility with the options of axial compression and locking capability throughout the length of the plate shaft.

Advantages and characteristics:

● This plate has variable angle locking hole and variable angle locking compression combi hole.

● The four-column thread in the variable angle lockinghole can provide 4-layer locking contact point between plate and screw.

● This realizes the angle stable structure and screw angle required.The design of screw holemakes screw have 15 degrees of axialangle in all directions.
