Six Channel Electrocardiograph Veterinary Portable Ecg Machine

Six Channel Electrocardiograph Veterinary Portable Ecg Machine

  • Six Channel Electrocardiograph Veterinary Portable Ecg Machine
Six Channel Electrocardiograph Veterinary Portable Ecg Machine
Product Details:
Place of Origin: China
Brand Name: BoneFix
Certification: CE ISO9001
Model Number: ● Thickness= mm ● Width= mm ● Waist width= mm
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Packaging Details: Carton
Contact Now
Detailed Product Description
High Light:

Veterinary Portable Ecg Machine

,

Electrocardiograph Portable Ecg Machine

,

Six Channel veterinary electrocardiograph

Quick Details

Place of Origin:
Jiangsu, China,Suzhou,Zhangjiagang
Brand Name:
BoneFix
Model Number:
9100-21
Properties:
The Basis of Surgical Instruments
Instrument classification:
Class II
Warranty:
1 Year
After-sale Service:
Return and Replacement
Product name:
Humeral External Fixator
Brand:
BoneFix
Material:
Titanium
Keywords:
Medical Instruments
Certificate:
CE/ISO:9001/ISO13485
Package:
PE film
MOQ:
1 Pc
Shipping:
DHL.UPS

Packaging & Delivery
Packaging Details
export carton
Lead Time:
Quantity(Pieces) 1 - 1 2 - 10 11 - 100 >100
Est. Time(days) 7 15 15 To be negotiated

Product Description

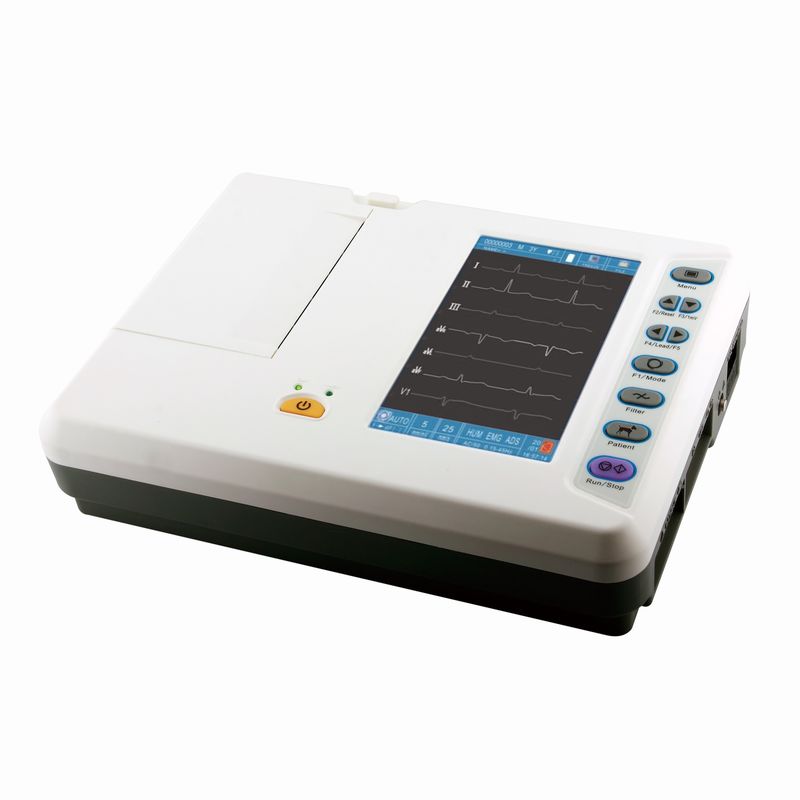

Meditech Six Channel Electrocardiograph Veterinary Portable Ecg Machine



 Product features:

  • Compact in size and nice design,easy to operate,portable
  • 112mm,six channel format recording with interpretation
  • Three working modes:Auto,Manual and Arrythmia Analysis
  • Lead-off indication
  • 7 leads simultaneously collection and display
  • 800*480 graphic 7 inch color LCD display
  • 250 cases of ECG can be saved
  • Adapt to 110-230V,50/60Hz power supply
  • Rechardeable Ni-MH battery supports continuous work for 3 to 4 hours
  • With Ps232 and USB communication interface
  • PC ECG Management software is optional





Technical Specification:

Lead Standard 7 leads
Lead acquisition 12bit/1000Hz(synchronously 7 leads)
Work mode Auto,Auto 2,Man,Analysis
Filter .AC Filter:50Hz/60Hz
.EMG Filter:25Hz/45Hz
.Anti-Drift Filter:0.15Hz(Adaptive)
CMMR >/=100dB(with AC Filter)
Input circuit Floating;Protection circuit against
Defibrillator effect
Input impedance >/=50MΩ
Input circuit current </=0.05μA
Patient current leakage <10μA
Calibrating Voltage 1mV±2%
Voltage tolerance </=±500mV
Time constant </=3.2s
Frequency response 0.05~160Hz(-3db)
Noise level <15μVp-p
Inter-channel interference </=0.5mm
Sensitivity Auto,2.5,5,10,20,40mm/mV
Recording mode 3ch,3ch+V,6ch
Paper speed 6.25,12.5,25,50mm/s(±3%)
Paper 50mm*20m roll paper
Communication Rs232/USB port
Power supply .AC-110-230V,50/60Hz
.DC:Rechargeable Li-ion battery
Dimension and weight 300mm*2307mm*72mm,2.8kgs









Standard Packing:

Main unit 1 unit
Veterinary patient cable with electrodes 1 pc
Grounding cable 1 pc
Paper axis 1 pc




Six Channel Electrocardiograph Veterinary Portable Ecg Machine 0



Priority:



1.Specialized in manufaturing orthopedics Implants products for many years,owns first-class working environment.



2.Feedback: Quick response in 24 hours by professional sales team



3.Certificates:We can supply you the CE& ISO



4.Competitive price with best quality



5.We will modify the specifications as your requirements& provide OEM business
